Low Speed Performance High Accuracy 95Nm Electric Dynamometer

Name: Low Speed Performance High Accuracy 95Nm Electric Dynamometer
Brand: SEELONG
Price: 1 USD

Brand Name : SEELONG

Model Number : SSCG30-3000/10000

Certification : CMC

Place of Origin : China Luoyang

MOQ : 1

Price : Confidential

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 8-12 weeks

Packaging Details : 1200mmX2000mmX1800mm wooden box per set

Power : 30KW

Rated torque : 95Nm

Max working speed : 10000rpm

Constant power range : 3000-10000rpm

Constant torque range : 0-3000rpm

Measurement accuracy : 0.05/0.2/0.5

Contact Now

Low Speed Performance High Accuracy 95Nm Electric Dynamometer

Introduction

Seelong provides a high-performance solution for all tasks of a modern efficient test cell, including durability, vehicle simulation, and high-dynamic transient testing, including high-speed electric motors. The AC dynamometers are designed to meet the high-performance demands for modern engine and electric motor testing facilities.

Product feature

Low startup power demands that also protect components on the receiving end
Controllable starting current levels and acceleration
High durability and longer life spans
Capabilities for multi-phase configurations

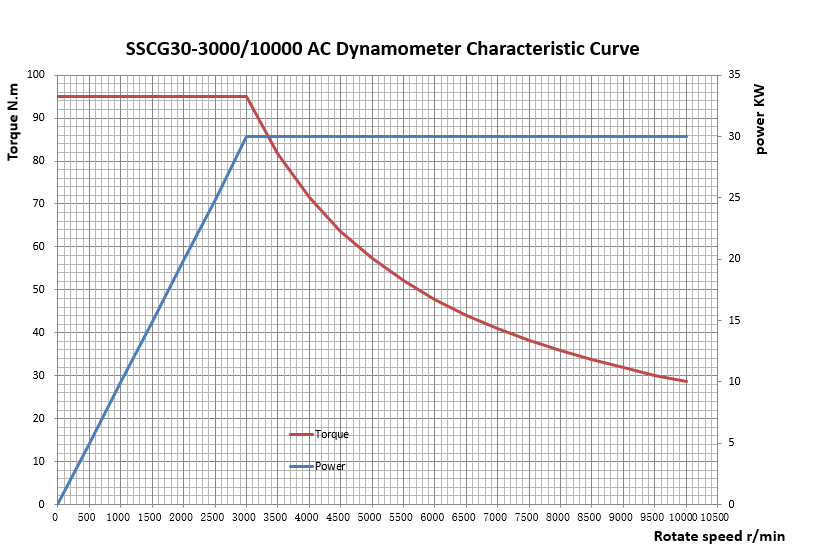

Characteristic curve

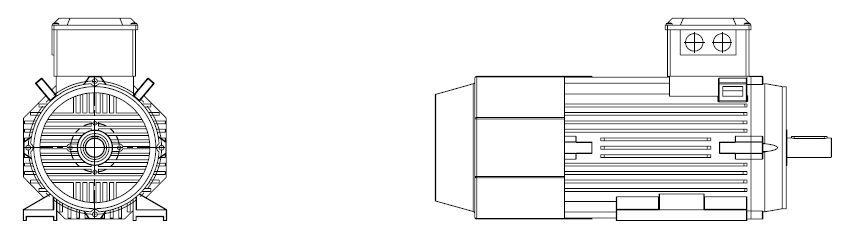

Product drawing

Low Speed Performance High Accuracy 95Nm Electric Dynamometer
