SLFN-200 200Nm High precision Contactless Transmission Strain Torque digital torque meter
Torque sensors
The strain type flange torque sensor has a built-in digital measurement signal conditioning unit, through the non-contact signal transmission, directly
The data is output in the form of standard analog quantum signals. The rotor rotates in the stator ring without the use of any mechanical bearings and thus does not wear out.
Technical parameter
- Measuring range: ± 50... 200 Nm
- Accuracy class: 0.5%
- Working speed: 0-10000 rpm
- Output signal: 5-15kHz/ 0-10V /4-20mA /RS485
- Overload capacity: 120%
- Response frequency: 100 μ s
- Insulation resistance: > 200m Ω
- Linearity: < 0.2%
- Lag: < 0.1%
- Zero drift: < 0.5% 10. Repeatability: < 0.2%
- Power supply: 24 VDC
- Ambient temperature: - 40-60 ℃
- Relative humidity: < 90% RH
- Storage temperature range: - 25-80 ℃
- Operating temperature range: - 10-70 ℃
- Sensor amplitude: 10V
- Sensor power consumption: ≈ 4W
- Current consumption of sensor: 100mA
- Response time of dynamic strain wave of strain gauge: 3.2x10-6s
- Sensor housing: strongly anodized aluminum
Characteristic
- High precision, optional frequency, voltage, current signal outputThe axial dimension is very small
- Compact flange-flange connection design
- Digital non-contact signal transmission
- No bearing, no maintenance
- Have system self-check function
Benefits at a glance
- Quality costs are cut because deviations are detected at an early stage
- Torque measurement is integrated in the production process
- Process efficiency is optimized because the measuring equipment used is extremely flexible
- Process monitoring ensures zero-defect production

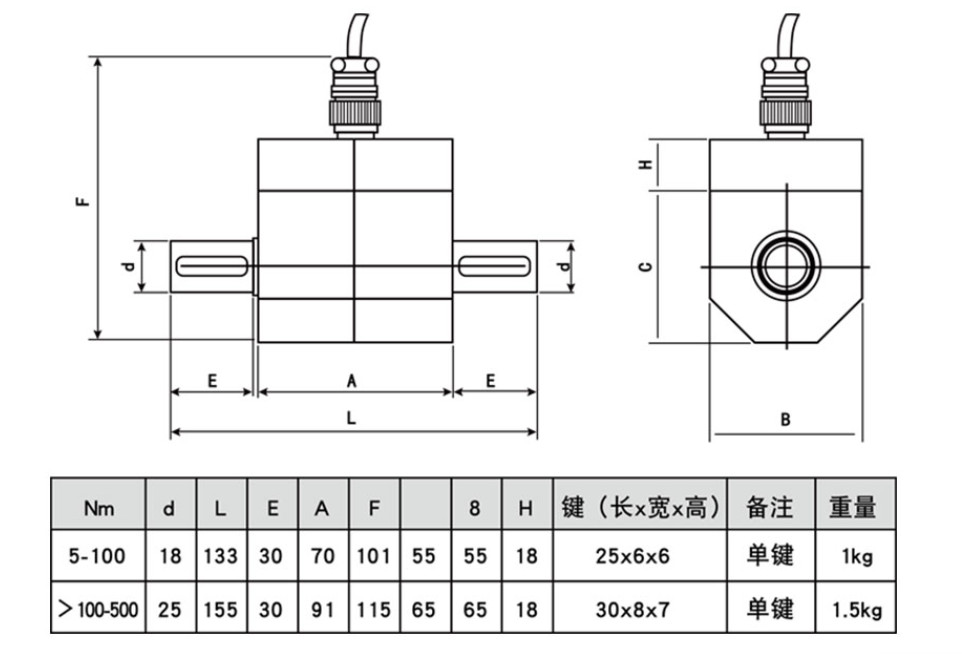

Model
| Model | measuring torque(Nm) | Max.torque(Nm) | allowable speed (rpm) | precision (%FS) | dimension |
| SLNC50 | 50 | 60 | 10000 | 0.5 | Please consult |
| SLNC100 | 100 | 120 | 10000 | 0.5 | Please consult |
| SLNC200 | 200 | 360 | 10000 | 0.5 | Please consult |
FAQ
Q: What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
